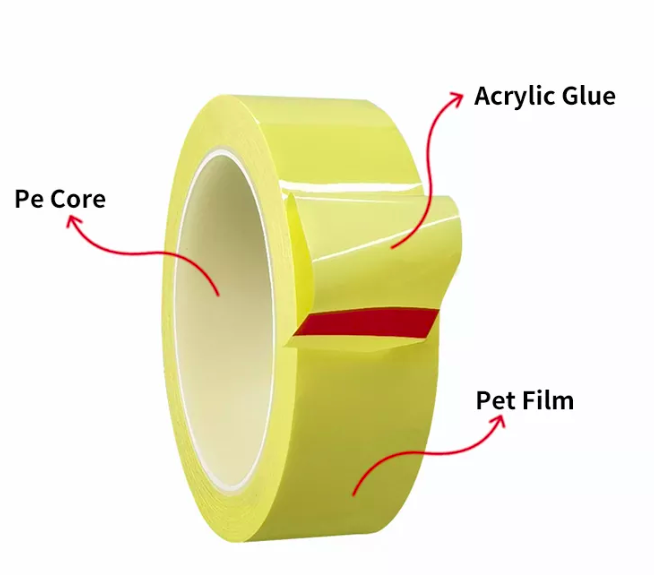

Description | With polyster film as basement,coated with flame retardant acrylic adhesive. | |||||
Application | It's mostly applied for the transformer,motor, capacitor and other electronic parts insulation wrapping. | |||||
Feature | great performance on flame resistance and chemical solvent resistance | |||||
Technique Data | ||||||
Item | Unit | Data | Test Method | |||
1.Basic info. | ||||||
a.base | PET | |||||

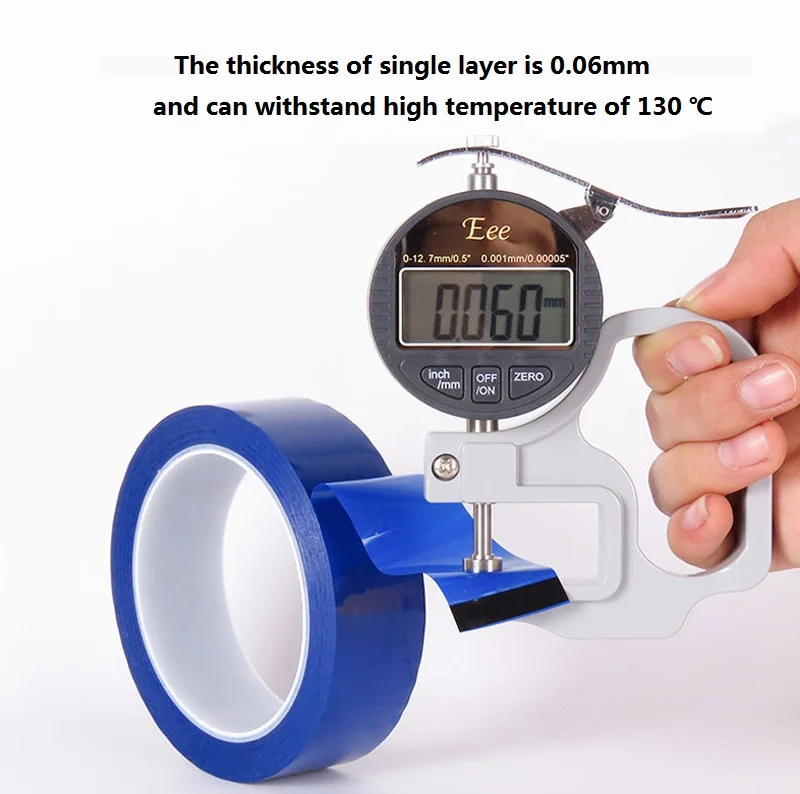

b.Thickness | mm | 0.058 | 0.055 | 0.085 | ||

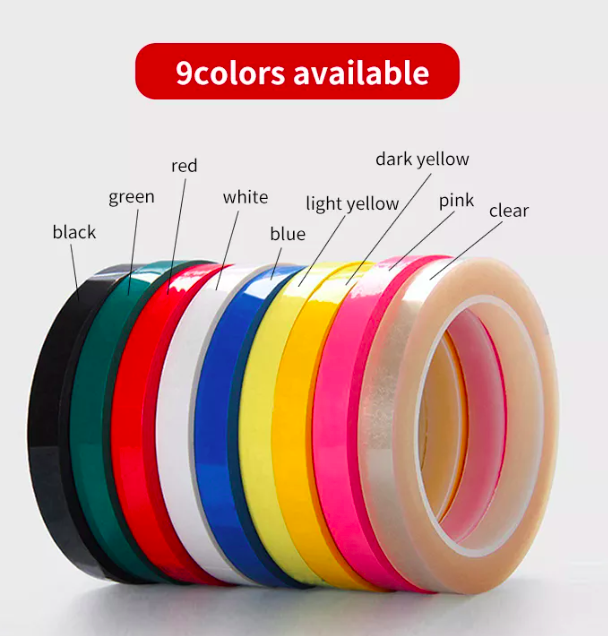

c.Color | Light Yellow/Dark Yellow | Transparent | Light Yellow/Dark Yellow | Red,Blue,Yellow,White and Black | ||
2.Physical and Chemical Characteristics | ||||||
a.180°Peel Adhesion | KN/m | 0.4 | 0.3 | 0.46 | GB/T 2792-1998 | |
b.Tensile Strength | N/10mm | 46 | 46 | 84 | GB/T 7753-1987 | |
c.Elongation | % | 109 | 109 | 127 | GB/T 7753-1987 | |
d.Breakdown Vottage | KV | 5 | 5 | 7.5 | GB/T 7752-1987 | |
e.Temperature Resistance | °C | 130 | ||||
f.Grade of Temperature Resistance | (a) | B | ||||
3.Remark | reach requirements of UL510 flame-retardant performance | |||||
(a)Clasification: “A”105°C,“E”120°C,“B”130°C, “F”155°C,“H”180°C, “N”200°C,“R”220°C,“S”240°C. | ||||||
Package | 66 meters per roll | |||||

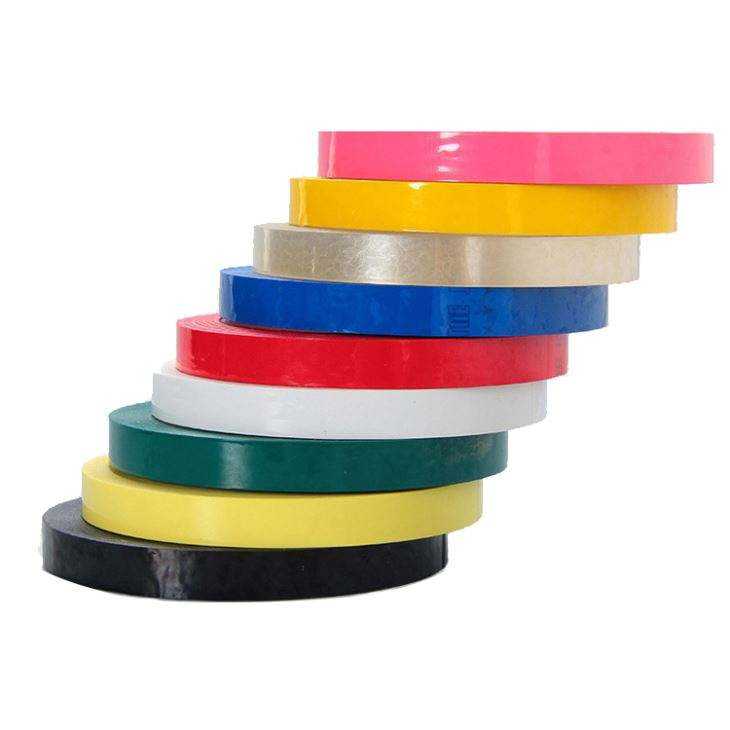

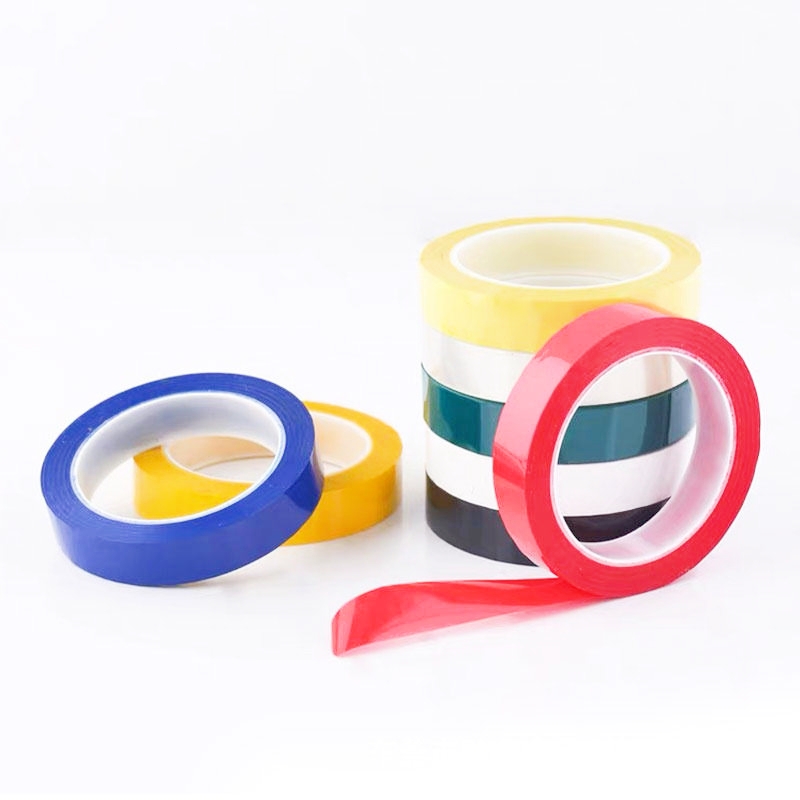

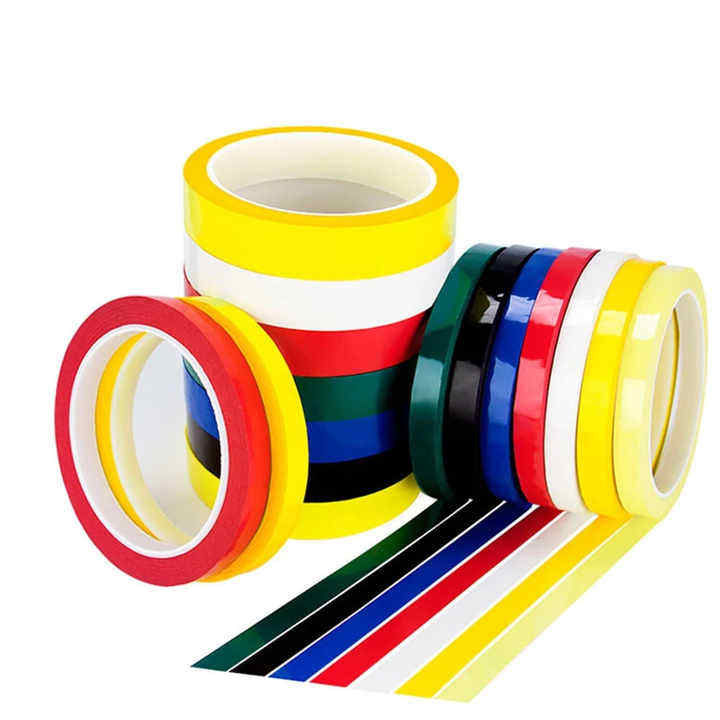

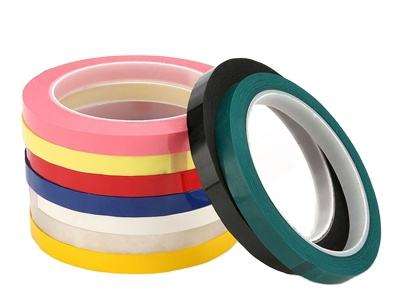

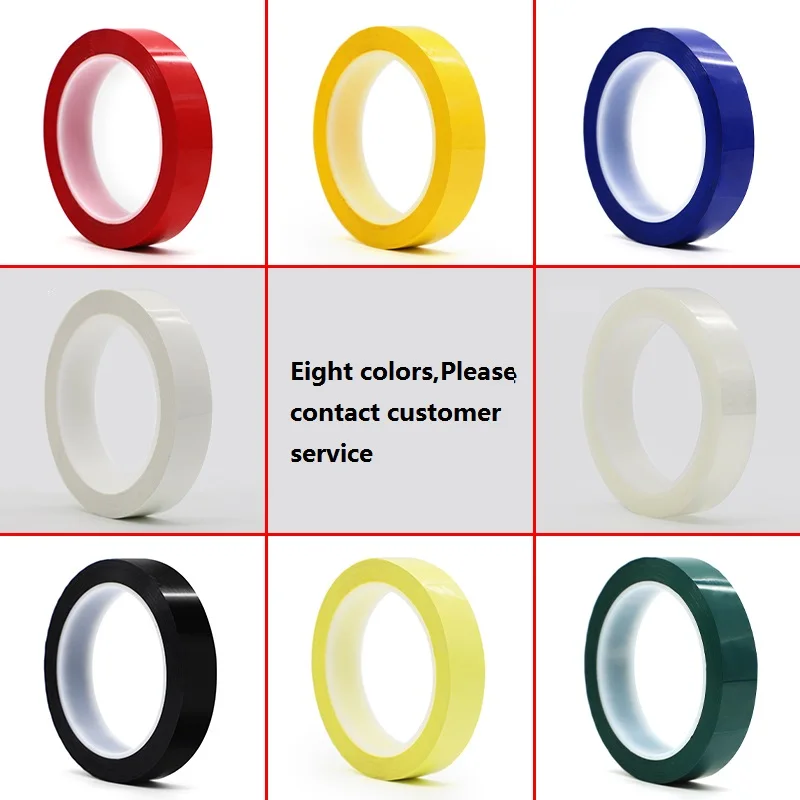

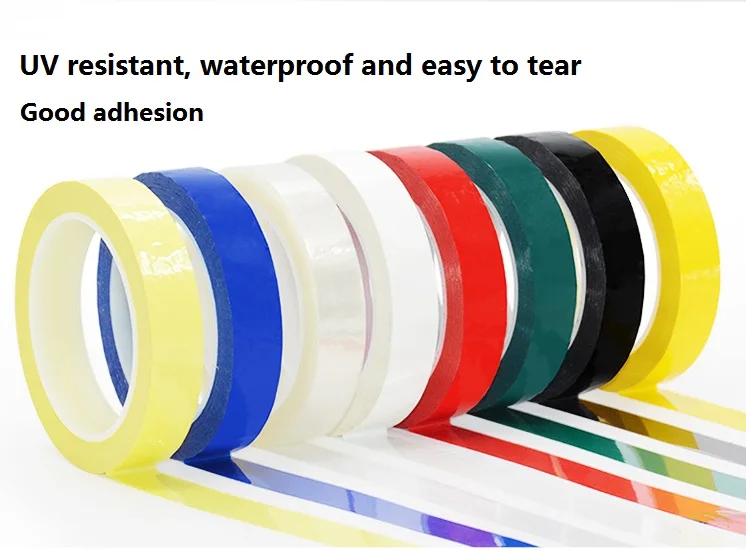

Product Display
