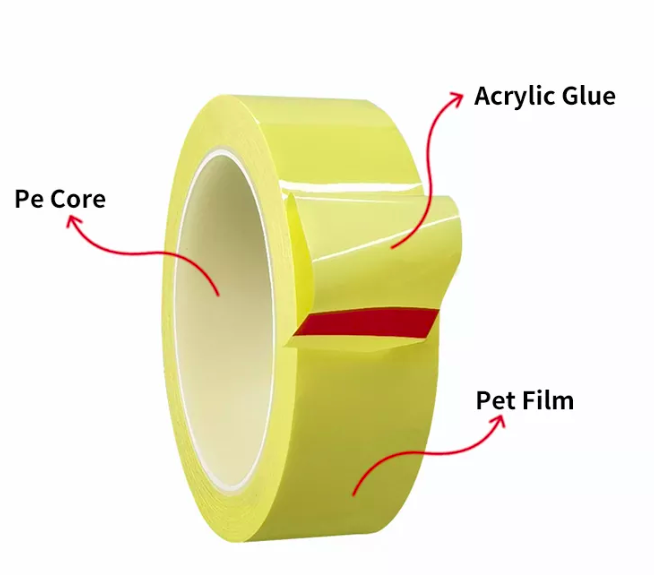

Description | Mylar tape is using polyester film as backing material and coated with solvent acrylic adhesive. It is flame retardant and many colors are available. It is used for insulating electric and electronic components. | |||||
Application | It's mostly applied for the transformer,motor, capacitor and other electronic parts insulation wrapping. | |||||
Feature | great performance on flame resistance and chemical solvent resistance | |||||
Technique Data | ||||||
Item | Unit | Data | Test Method | |||
1.Basic info. | ||||||
a.base | PET | |||||

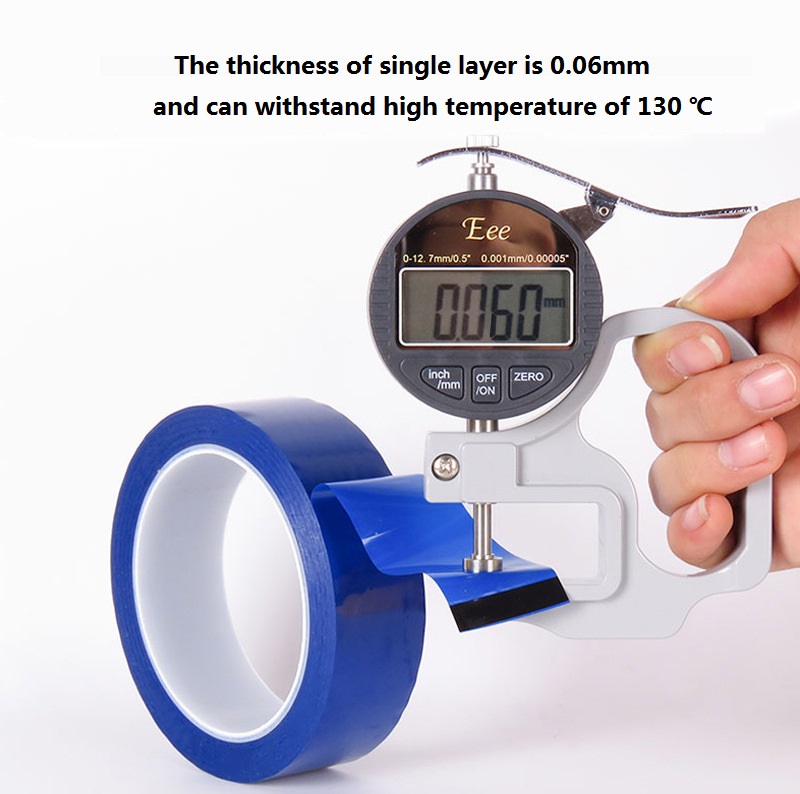

b.Thickness | mm | 0.058 | 0.055 | 0.085 | ||

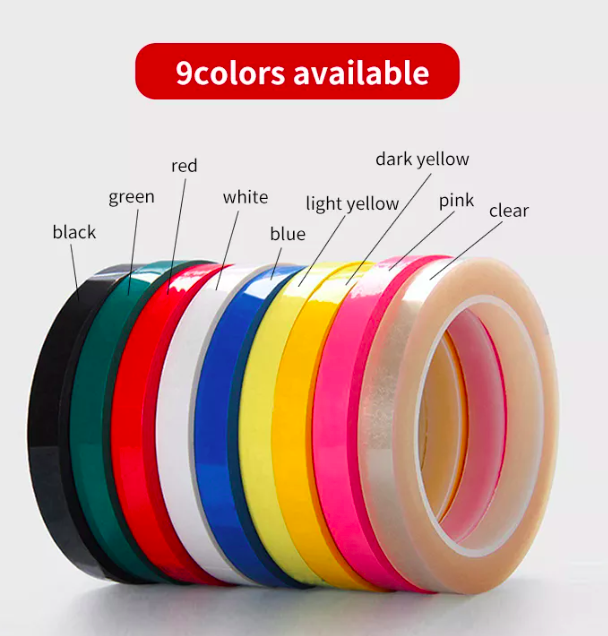

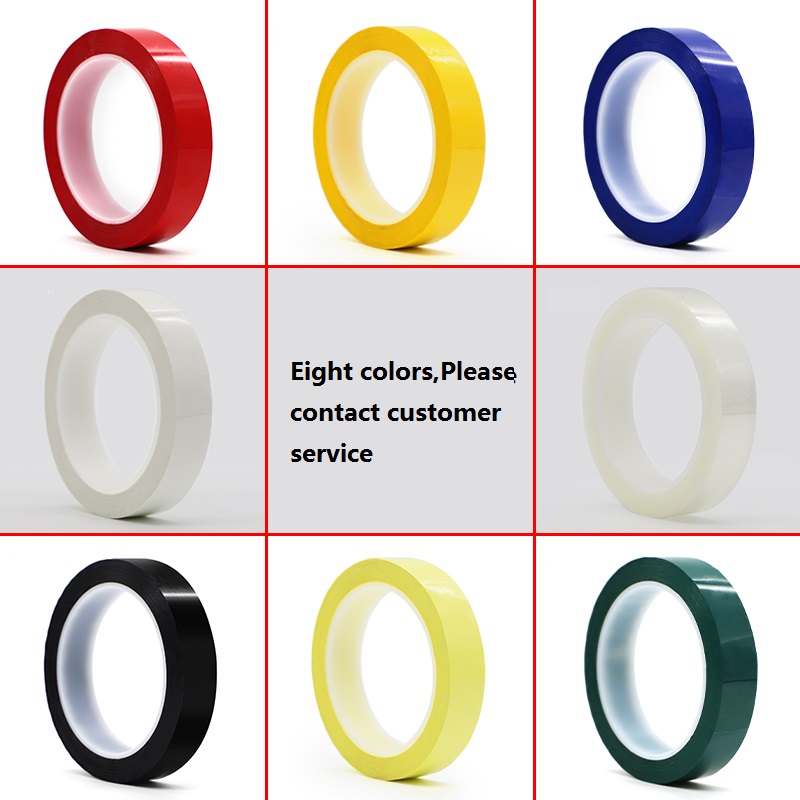

c.Color | Light Yellow/Dark Yellow | Transparent | Light Yellow/Dark Yellow | Red,Blue,Yellow,White and Black | ||
2.Physical and Chemical Characteristics | ||||||
a.180°Peel Adhesion | KN/m | 0.4 | 0.3 | 0.46 | GB/T 2792-1998 | |
b.Tensile Strength | N/10mm | 46 | 46 | 84 | GB/T 7753-1987 | |
c.Elongation | % | 109 | 109 | 127 | GB/T 7753-1987 | |
d.Breakdown Vottage | KV | 5 | 5 | 7.5 | GB/T 7752-1987 | |
e.Temperature Resistance | °C | 130 | ||||
f.Grade of Temperature Resistance | (a) | B | ||||
3.Remark | reach requirements of UL510 flame-retardant performance | |||||
(a)Clasification: “A”105°C,“E”120°C,“B”130°C, “F”155°C,“H”180°C, “N”200°C,“R”220°C,“S”240°C. | ||||||
Package | 66 meters per roll | |||||

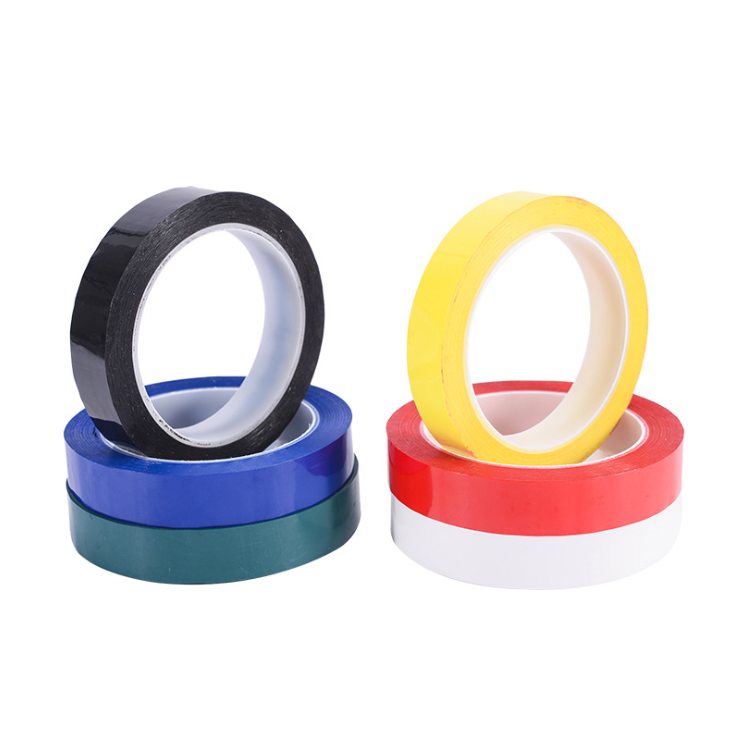

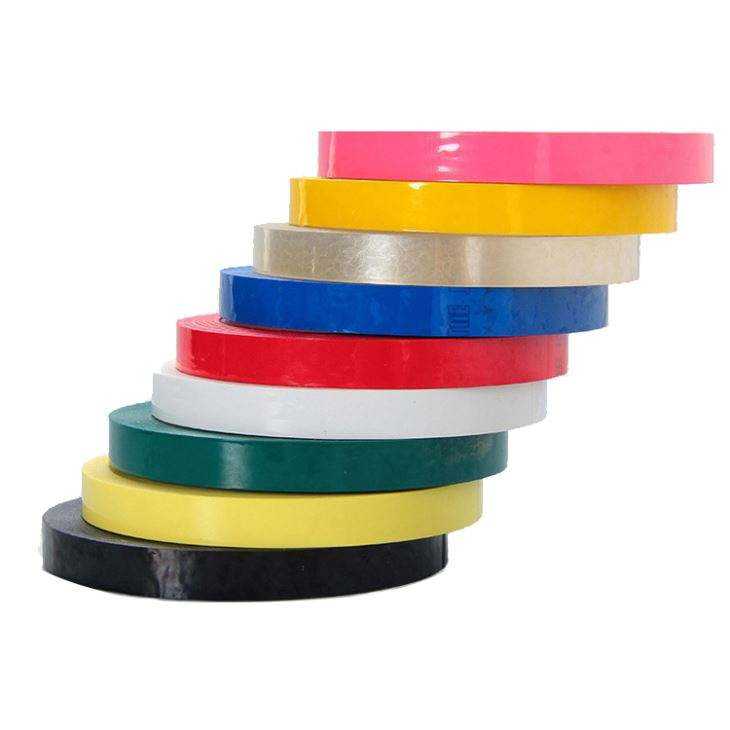

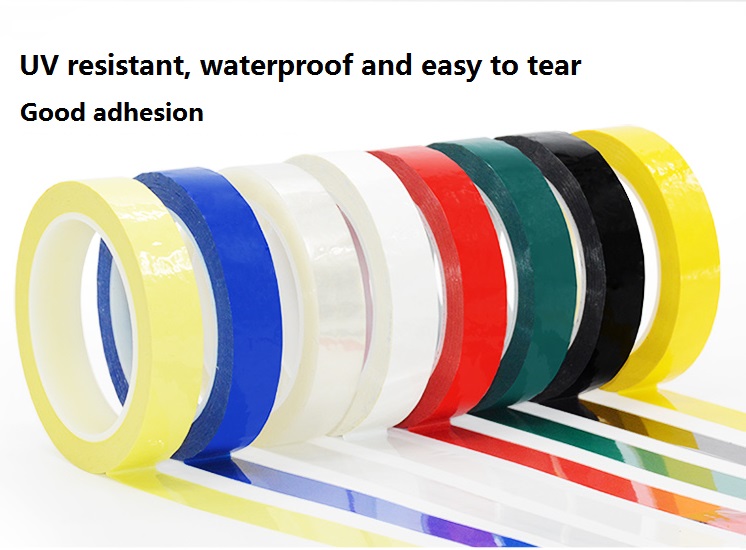

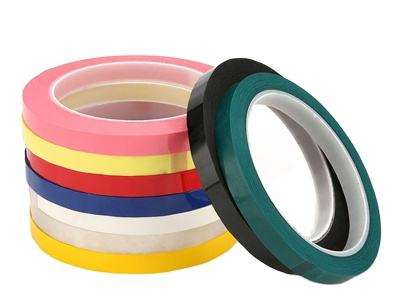

Product Display
