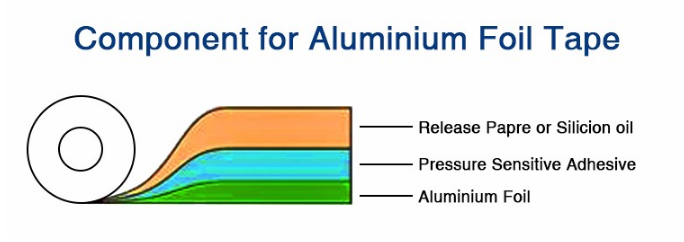

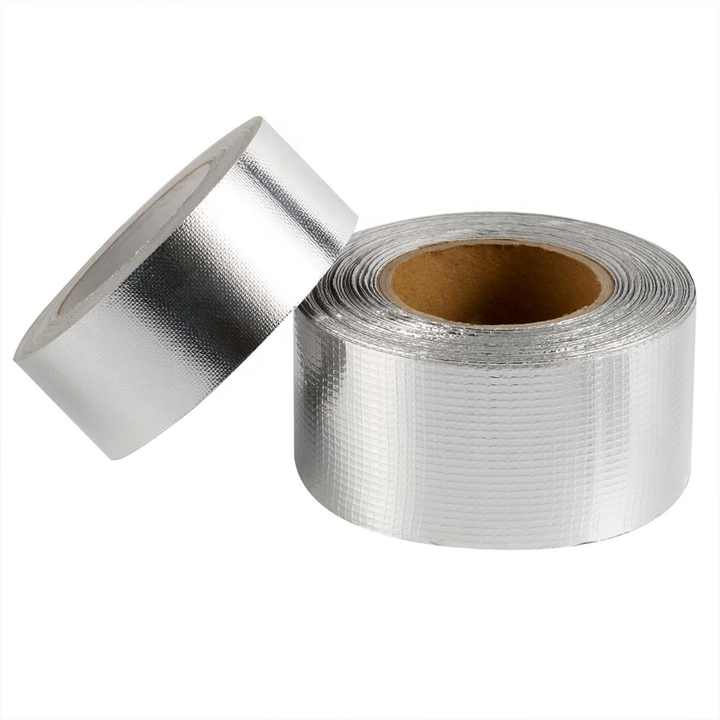

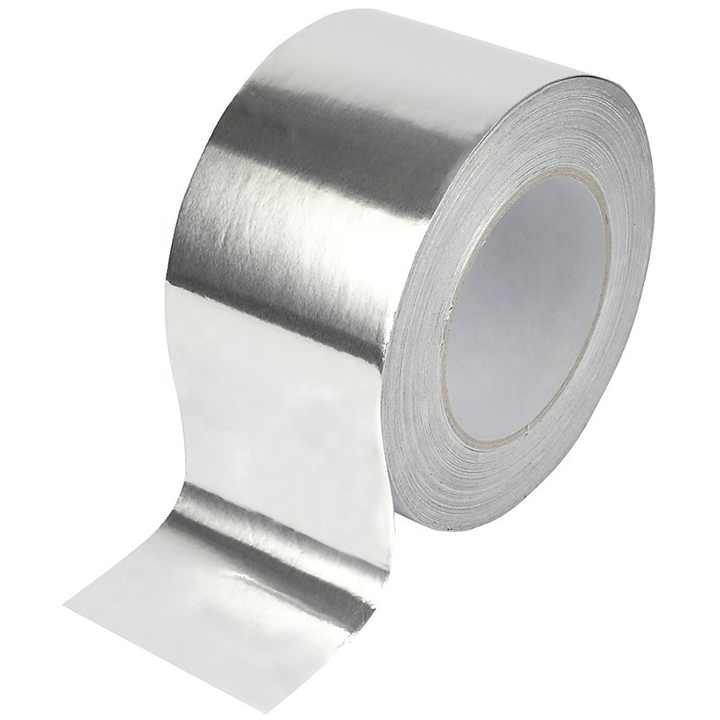

Laminate backing provides good conformability and smooth, consistent unwind. High temperature silicone adhesive.
Reflective backing protects from radiant heat and light exposure. 200ºC Continuous Operating Temperature
(250ºC Intermittent). Flame-Retardant, Self Extinguishing
Features
1. Aluminum film + PE film
2. Solvent Acrylic
3. Good Isolation
4. Good Sealing
Thermal Insulation Tapes
| Item No. | Description | Backing | Adhesive | Thickness Micron | Adhesion N/25mm | Tensile N/25mm | Elongation | Service Temp |
| FT-18 | Foil: 18u / Solvent Acrylic Adhesive | Foil 18u | Solvent Acrylic | 55 | 18 | 35 | 3% | -30 ~ 120℃ |
| FT-22 | Foil: 22u / Solvent Acrylic Adhesive | Foil 22u | Solvent Acrylic | 60 | 20 | 40 | 3% | -30 ~ 120℃ |
| FT-25 | Foil: 25u / Solvent Acrylic Adhesive | Foil 25u | Solvent Acrylic | 65 | 20 | 45 | 3% | -30 ~ 120℃ |
| FT-30 | Foil: 30u / Solvent Acrylic Adhesive | Foil 30u | Solvent Acrylic | 70 | 20 | 45 | 3% | -30 ~ 120℃ |
| FT-36 | Foil: 36u / Solvent Acrylic Adhesive | Foil 36u | Solvent Acrylic | 76 | 20 | 50 | 3% | -30 ~ 120℃ |
| FT-40 | Foil: 40u / Solvent Acrylic Adhesive | Foil 40u | Solvent Acrylic | 80 | 20 | 55 | 3% | -30 ~ 120℃ |
| FT-45 | Foil: 45u / Solvent Acrylic Adhesive | Foil 45u | Solvent Acrylic | 85 | 20 | 65 | 3% | -30 ~ 120℃ |
| FT-50 | Foil: 50u / Solvent Acrylic Adhesive | Foil 50u | Solvent Acrylic | 90 | 20 | 75 | 3.5% | -30 ~ 120℃ |
| FT-75 | Foil: 75u / Solvent Acrylic Adhesive | Foil 75u | Solvent Acrylic | 125 | 20 | 100 | 5% | -30 ~ 120℃ |
deal for sealing joints / seams against moisture and vapor on foil jacketing insulation. Suitable for many other permanent
sealing, holding, splicing or masking applications requiring the protection offered by a foil backing.
