Thermal silica pad
Silicone

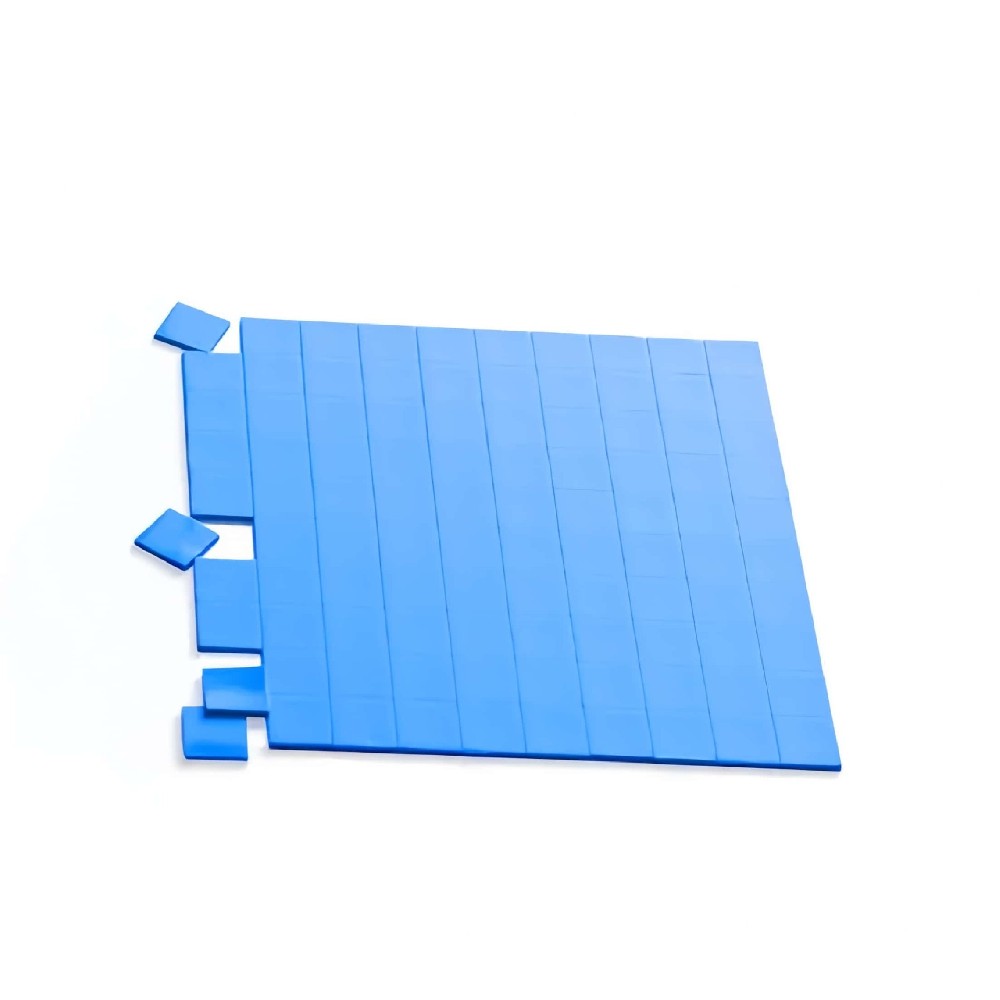

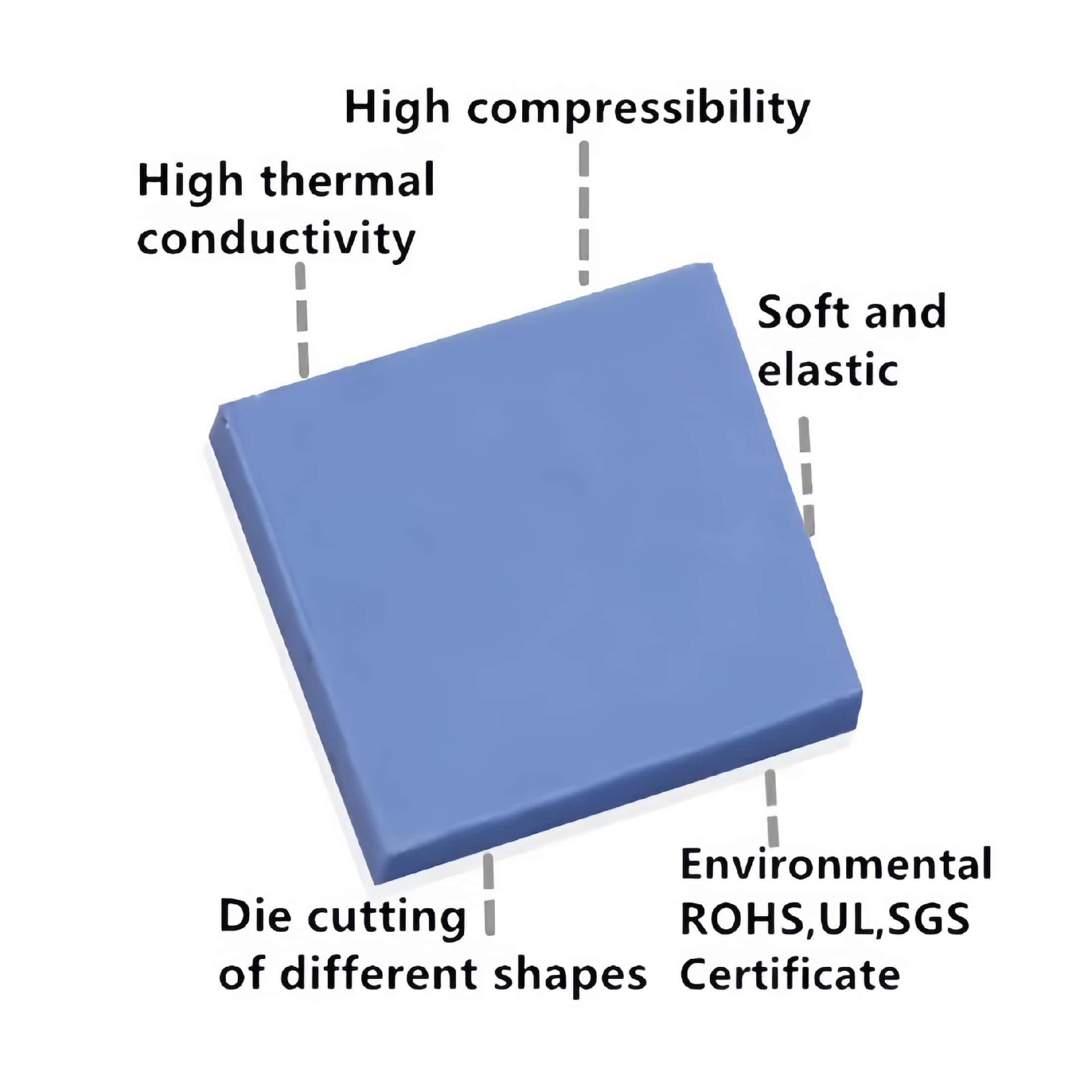

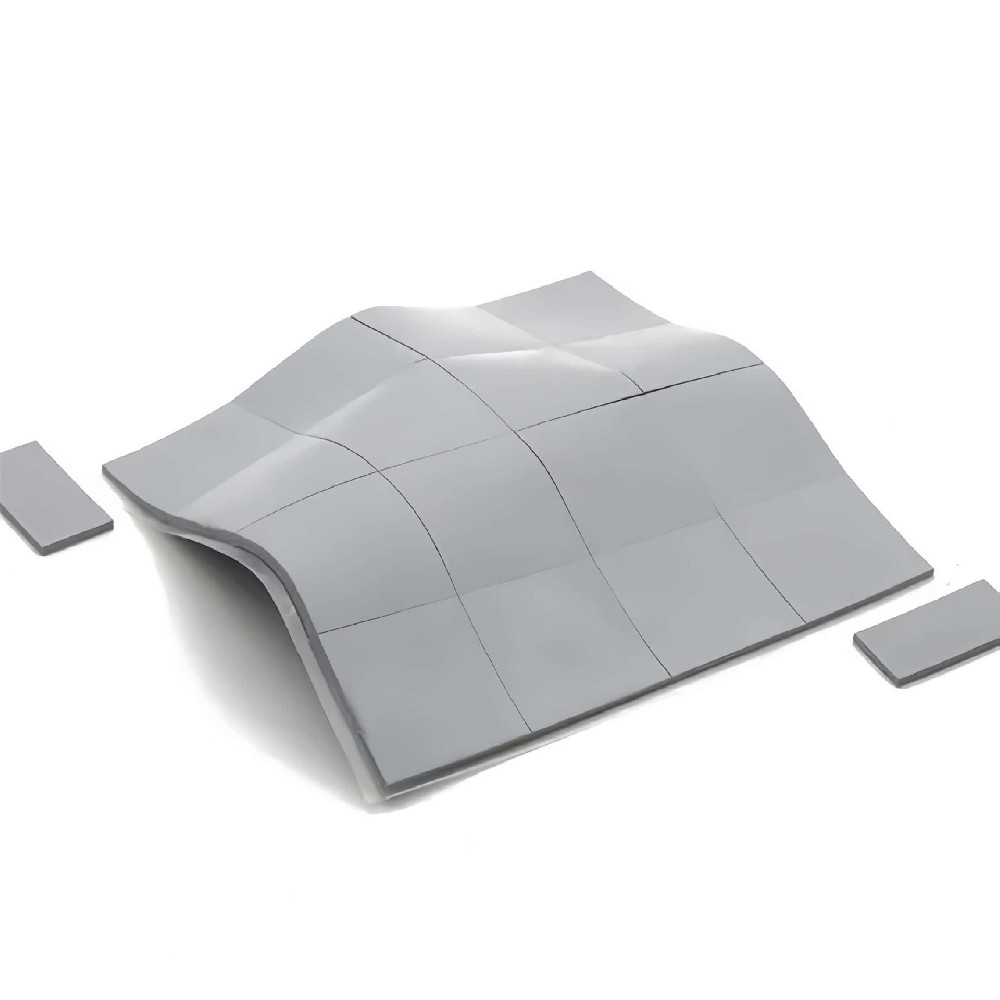

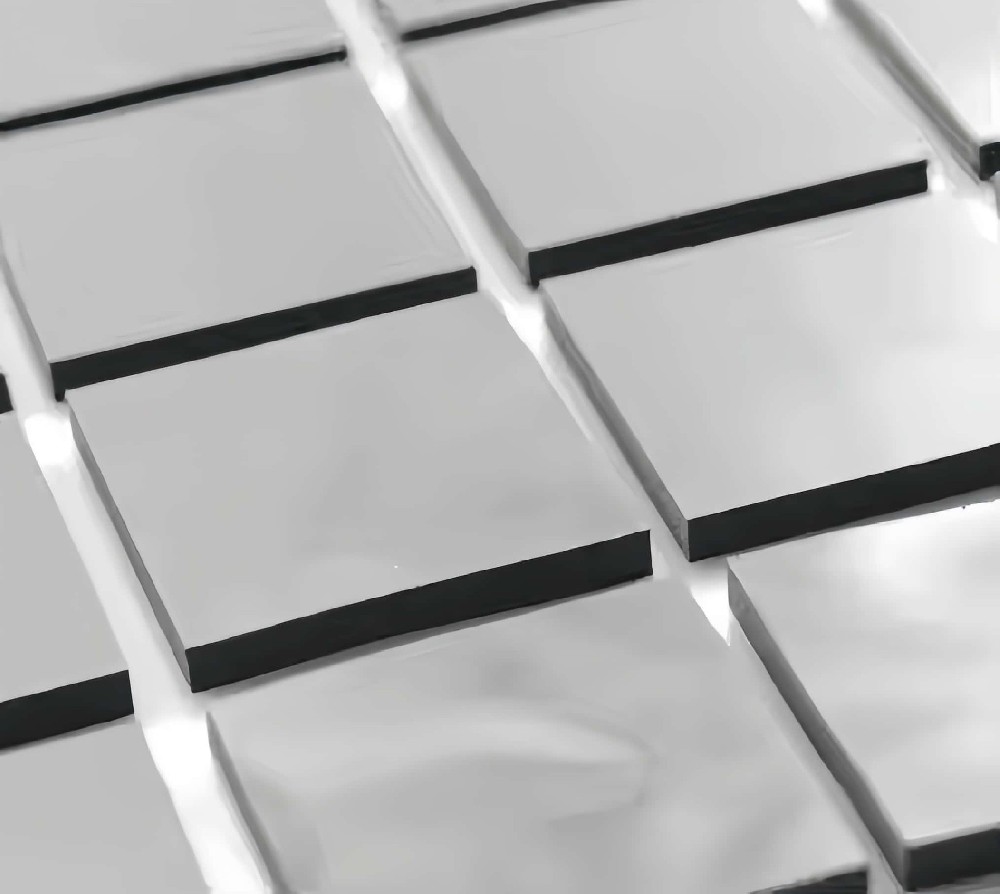

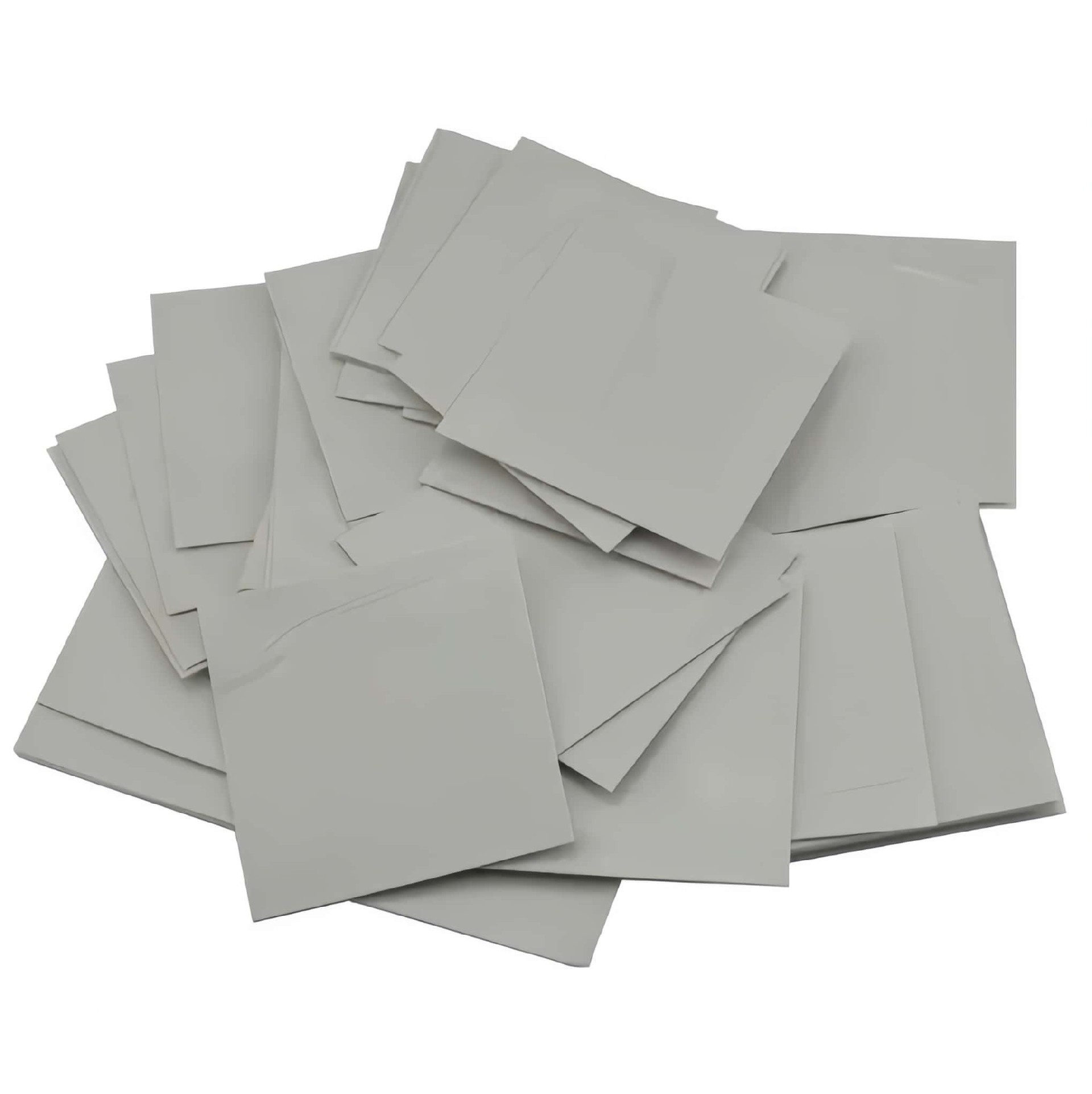

Thermal pad is specially designed for the purpose of high performance
thermal conductivity. Pad standard size 400mm*200mm

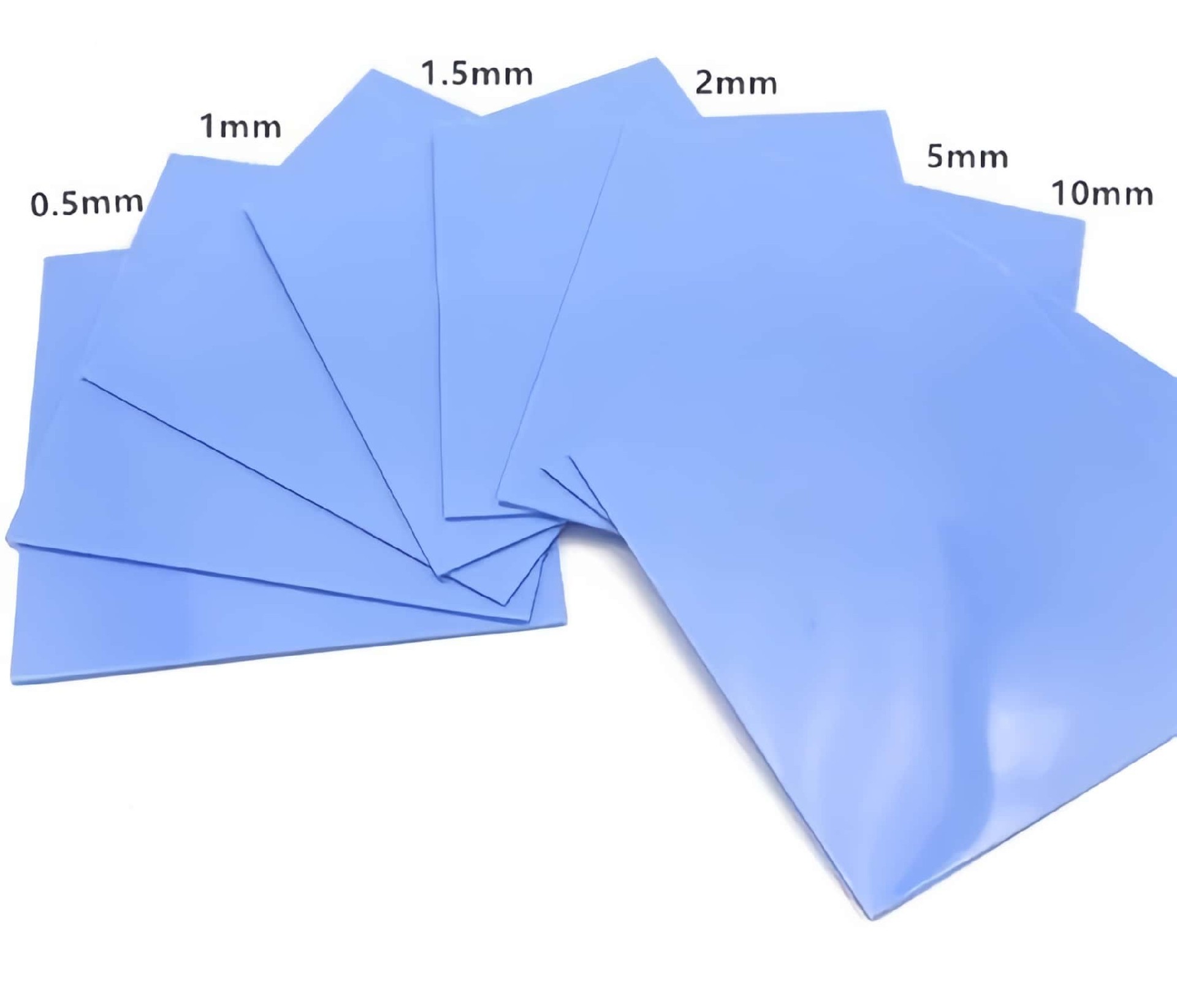

According to customer needs to cut the shapes. Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can be
customized.

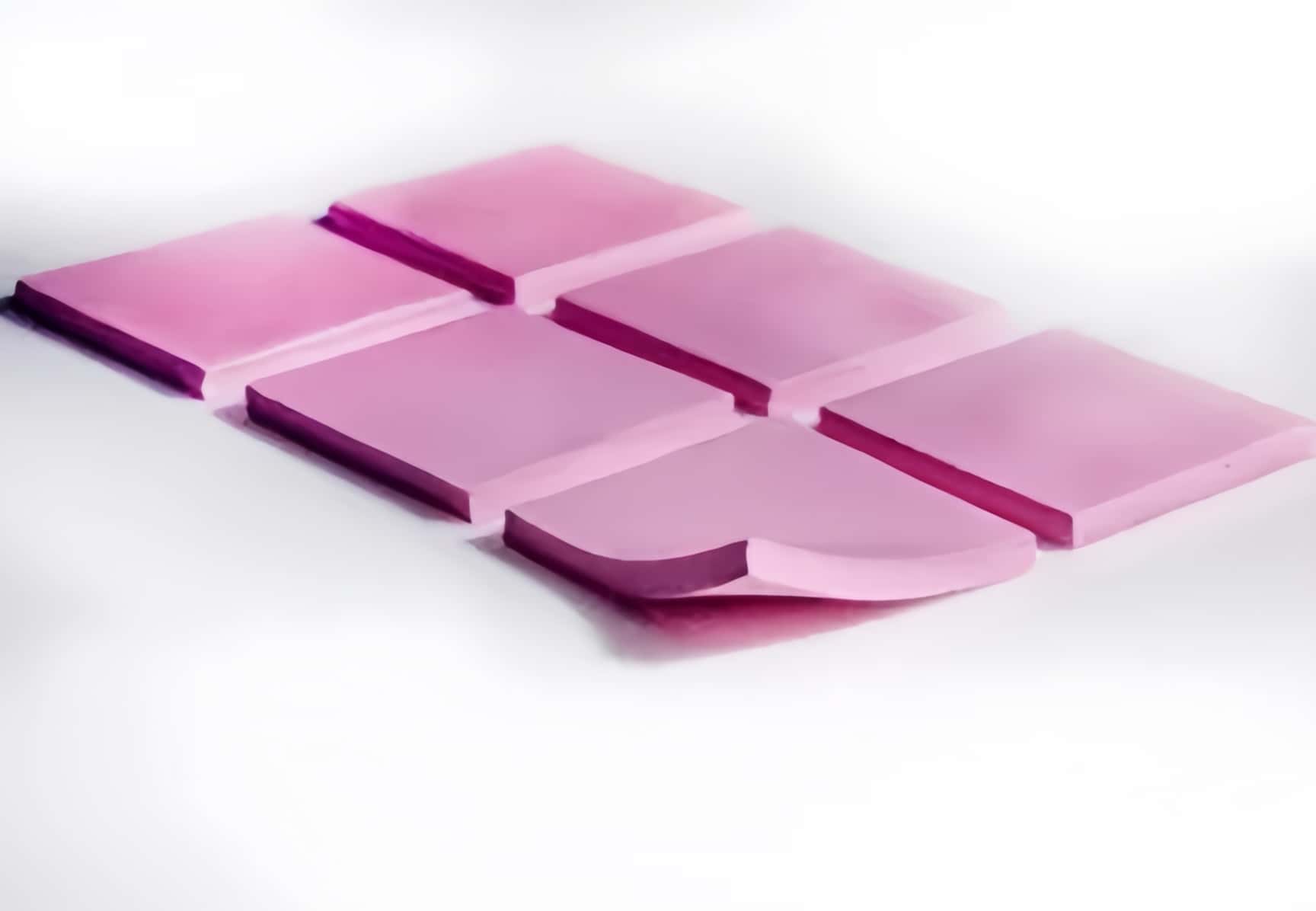

The product itself is slightly viscous, if need to strengthen the
adhesive can be according to customer's requirement.
Product
color is mass production, if need special color can be adjusted to the
actual situation,please check all TDS as following:
PROPERTIES | UNITS | AM12 | AM15 | AM20 | AM25 | AM30 | TEST METHOD |
Color | / | White Grey | White Grey | Grey | Orange | Blue | Visual |
Thermal impedance @1mm/20Psi | ºCin2/W | 0.8 | 0.7 | 0.5 | 0.47 | 0.42 | ASTM D5470 |
Specific Gravity | g/cm3 | 1.8 | 2 | 2.4 | 2.9 | 3 | ASTM D792 |
Volume Resistivity | ΩCM | 5.0×1013Ω | 5.0×1013Ω | 2.6×1013Ω | 1.5×1013Ω | 1.0×1014Ω | ASTM D257 |
Thermal Conductivity | W/mk | 1.2 | 1.5 | 2 | 2.5 | 3 | ASTM D5470 |
Breakdown Voltage | KV/mm | >=10 | >=10 | >=10 | >=10 | >=9 | ASTM D149 |
Dielectric Constant@1MHz | @1MHz | 5.5 | 5.5 | 6 | 5.5 | 5.6 | ASTM D150 |
Thickness (±10%) | mm | 0.2~10 | 0.2~10 | 0.2~10 | 0.3~5.0 | 0.3~5.0 | ASTM D374 |
Hardness | Shore 00 | 35/50 | 35/50 | 35/50 | 35/50 | 35/50 | ASTM D2240 |
Flammability class | / | UL94-VO | UL94-VO | UL94-VO | UL94-VO | UL94-VO | UL94 |
Application temperature | ºC | -50~+200 | -50~+200 | -50~+200 | -50~+200 | -50~+200 | *** |
Tape Choose | / | ∨ | ∨ | ∨ | ∨ | ∨ | *** |
Self-adhesive | / | Double sided | Double sided | Double sided | Double sided | Double sided | *** |
Fiber Strengthen | / | ∨ | ∨ | ∨ | ∨ | ∨ | *** |
PROPERTIES | UNITS | AM40 | AM50 | AM60 | AM80 | TEST METHOD |
Color | / | Brown | Dark Red | Light Grey | Grey | Visual |
Thermal impedance @1mm/20Psi | ºCin2/W | 0.36 | 0.21 | 0.2 | 0.15 | ASTM D5470 |
Specific Gravity | g/cm3 | 2.8 | 3 | 3.2 | 3.4 | ASTM D792 |
Volume Resistivity | ΩCM | 1.0×1014Ω | 1.0×1014Ω | 1.0×1013Ω | 1.0×1013Ω | ASTM D257 |
Thermal Conductivity | W/mk | 4 | 5 | 6.5 | 8 | ASTM D5470 |
Breakdown Voltage | KV/mm | >=9 | >=10 | >=10 | >=8 | ASTM D149 |
Dielectric Constant@1MHz | @1MHz | 5 | 5 | 5 | 7.5 | ASTM D150 |
Thickness (±10%) | mm | 0.5 ~5.0 | 0.5 ~5.0 | 0.5 ~5.0 | 0.5 ~5.0 | ASTM D374 |
Hardness | Shore 00 | 50 | 55 | 60 | 70±10 | ASTM D2240 |
Flammability class | / | UL94-VO | UL94-VO | UL94-VO | UL94-VO | UL94 |
Application temperature | ºC | -50~+200 | -50~+200 | -50~+200 | -40~+150 | *** |
Tape Choose | / | ∨ | ∨ | ∨ | ∨ | *** |
Self-adhesive | / | Double sided | Double sided | Double sided | Double sided | *** |
Fiber Strengthen | / | ∨ | ∨ | ∨ | ∨ | *** |
